Rogowski Flexible & Rigid Coils

Rogowski coils are a type of electromagnetic coil used for measuring alternating current (AC) electrical currents. They are used to measure the magnitude and phase of AC currents in electrical systems. There are two different types of Rogowski coils: flexible and rigid.

Invention and Origin
Rogowski coils are named after their inventor Walter Rogowski, who developed them in the early 20th century. Walter Rogowski a German physicist, invented them to accurately measure high-frequency AC currents, especially in situations where traditional iron-core current transformers were unsuitable due to their limitations in frequency response and linearity, so the coils were designed to provide a more flexible and accurate solution for measuring AC currents, particularly in power systems and industrial applications.

 Teaming Up Rogowski Coils with Electrical Devices

Rogowski coils are typically used in conjunction with measurement and monitoring devices like current analyzers, power analyzers, oscilloscopes, and data loggers. They are connected to these devices to provide accurate current measurements for analysis and monitoring purposes. Power analyzers are devices designed to measure and analyze various electrical parameters in AC circuits, such as voltage, current, power, and harmonics. Rogowski coils can be connected to these analyzers to provide accurate current measurements, which are crucial for comprehensive power analysis.

Industries and Rogowski Coil Applications
Industries that typically use Rogowski coils include power utilities, manufacturing, renewable energy, electric vehicle charging infrastructure, and any other application where accurate AC current measurement is essential. Applications include:
Power Monitoring and Analysis: They are commonly used in power quality analysis to measure current harmonics, power factor, and other parameters in electrical systems.
Energy Management: Rogowski coils help monitor and optimize energy consumption in commercial and industrial facilities.
Electric Vehicle Charging: They are used in electric vehicle (EV) charging stations to monitor and control charging currents.
Renewable Energy: Rogowski coils are used in solar and wind power systems to measure and monitor AC currents and voltages.
Industrial Automation: They play a role in process control and monitoring in industrial automation applications.
Fault Detection: In electrical systems, they can be used for fault detection and diagnostics.

Conversion to Solar Applications
Rogowski coils can be used in solar applications to measure AC currents in inverters, transformers, and other components of solar power systems. This data can be essential for monitoring system performance and ensuring efficient energy conversion from solar panels to usable electricity.

There are two types of Rogowski coils: Flexible and Rigid
These two different types of current sensors are used for measuring electrical currents in various applications. The main difference between them lies in their physical construction and the flexibility of their design.

Flexible Rogowski Coils
Construction: Flexible Rogowski coils are made from a flexible, coil-shaped conductor without a rigid core. The conductor is typically wound in a helical or spiral shape and is usually made of a flexible material such as a flat, ribbon-like cable or a flexible printed circuit board (PCB).
Flexibility: As the name suggests, these coils are highly flexible and can be easily bent or shaped to fit around or through complex conductor configurations. They are often used in applications where space is limited or where it's challenging to thread a rigid sensor.
Applications: Flexible Rogowski coils are commonly used in applications such as power quality monitoring, current measurement in electrical panels, and power analyzers. Their flexibility makes them suitable for use in tight spaces or on irregularly shaped conductors.

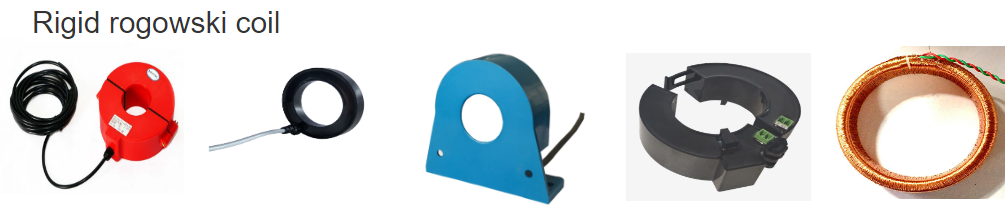

Rigid Rogowski Coils
Construction: Rigid Rogowski coils, on the other hand, have a rigid, tubular or cylindrical core made of materials like plastic or metal. The coil conductor is wound around this core, and the entire assembly is generally more robust and less flexible compared to the flexible variant.
Rigidity: Rigid Rogowski coils are less flexible and not easily bendable, as their primary design is to maintain a fixed shape and provide mechanical support to the coil conductor.
Applications: Rigid Rogowski coils are typically used in applications where stability and precision are critical, such as high-precision current measurements in laboratories, power system monitoring, and equipment calibration. The rigid structure helps maintain the coil's accuracy and shape over time.
